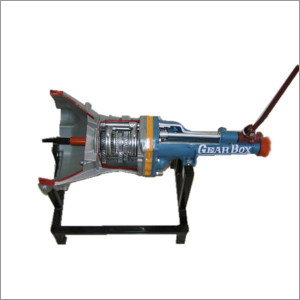

Gear box actual cut section

Get a Price/Quote

MOQ : 1 Piece

Gear box actual cut section Specification

Display Type
Physical cut-section display

Control Type
Manual

Accuracy
Educational precision (not for precision mechanical work)

Glass Type
Transparent Acrylic Section (for view)

Features
Exposes internal gear arrangement, robust construction, real component demonstration, corrosion resistant, easy to mount and operate

Shape
Rectangular with visible gear arrangement

Speed Range
Not applicable (demonstration purpose)

Temperature Resistance
Not intended for thermal use

Usage
Use For Industrial

Type
Actual Cut Section Model

Dimension (L*W*H)
Approx. 300mm x 180mm x 200mm

Product Type
Gear box

Equipment Type
Mechanical Training Equipment

Equipment Materials
Combination of Stainless Steel and Transparent Acrylic (for clear visibility of internal gearing)

Power
Not applicable (manual demonstration)

Material
Stainless Steel

Application
Technical and Vocational

Warranty
1 Year

Gear box actual cut section Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
5 Pieces Per Week

Delivery Time
1 Week

Main Export Market(s)
Western Europe, Australia, Eastern Europe, Middle East, Central America, South America, Asia, North America, Africa

Main Domestic Market
All India

About Gear box actual cut section

We are offering Actual Cut Section Model for Automobile Industry to the prestigious clients. Our dedicated and knowledgeable professionals manufacture this section model using best quality components and advanced technology in synchronization with set industrial norms.

Salient Features

Authentic design
Dimensionally accurate
Durable
Easy to handle
Fine finishing
Competitive pricing

Demanded In

Schools
Colleges
Research Institutions

IC Engine Test Setups

Petrol Engine Test Rig
