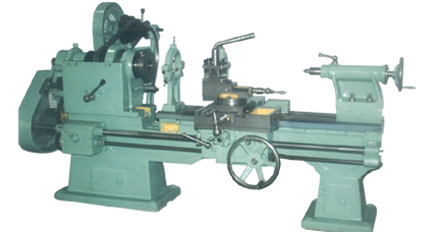

LATH MACHINE

Send Inquiry

Product Code : 0344

Price And Quantity

Minimum Order Quantity
1 Piece
Price Range
50000.00 - 80000.00 INR/Piece

Product Specifications

Weight
200-500 Kilograms (kg)
Product Type
LATH MACHINE

Usage
Use For Laboratory
Power
50 Watt (w)

Voltage
220-440 Volt (v)
Material
Stainless steel

Application
Laboratory
Warranty
1 Year

Product Description

Lathe Machine-

These machines are demanded worldwide for metal spinning, metalworking and wood turning applications. Offered machine is manufactured in strict adherence with international norms, under the supervision of skilled professionals. Tough in construction, these machines are highly efficient in performance and are applauded for their operational accuracy. Customers can avail Lathe Machine from us at industry leading prices.

Other information:

PARTICULARS	VASU - 1	VASU - 2	VASU - 3
Length of Bed	1350 mm./ 4' - 6"	1600 mm./ 5' - 3"	1800 mm./ 6'
Admit Between Centre	522 mm.	750 mm.	978 mm.
Height of Centre	215 mm.	215 mm.	215 mm.
Width of Bed	270 mm.	270 mm.	270 mm.
Spindle Bore	52 mm.	52 mm.	52 mm.
Spindle Nose Dia/Threads	74.3 x 6 TPI	74.3 x 6 TPI	74.3 x 6 TPI
Taper Bore in Spindle	MT - 6	MT - 6	MT - 6
No of Spindle Speed/Range	6/40 to 470 mm.	6/40 to 470 mm.	6/40 to 470 mm.
Swing over Cross Slide	230 mm.	230 mm.	230 mm.
Swing over Bed	415 mm.	415 mm.	415 mm.
Tail Stock Spindle Morse Taper/Dia M.	MT - 4/50 mm.	MT - 4	MT - 4
No of Threads / Pitch	TPI 2 to 48	TPI 2 to 48	TPI 2 to 48
Electric Motor	2 HP.	2 HP.	2 HP.

Standard Accessories

Dead Centre - 2 Nos, Centre Adaptor, Chuck Plate, Tool Post Key, Change gear set, Motor Pulley, Switch, V-belt.

Optional Accessories
Steady Rest, Follow Rest, Face Plate Taper turning attachment, Electrical, Coolant Pump with tank, Norton gear box, Three Speed Gear box, Rear tool Post.

Note

All Dimensions are in MM.APP.
Due to technological developments the illustration and Specification are not biniding in detail and are subject to change without notice.

Trade Information

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)
Supply Ability
1 Piece Per Month

Delivery Time
1 Week
Main Export Market(s)
Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
